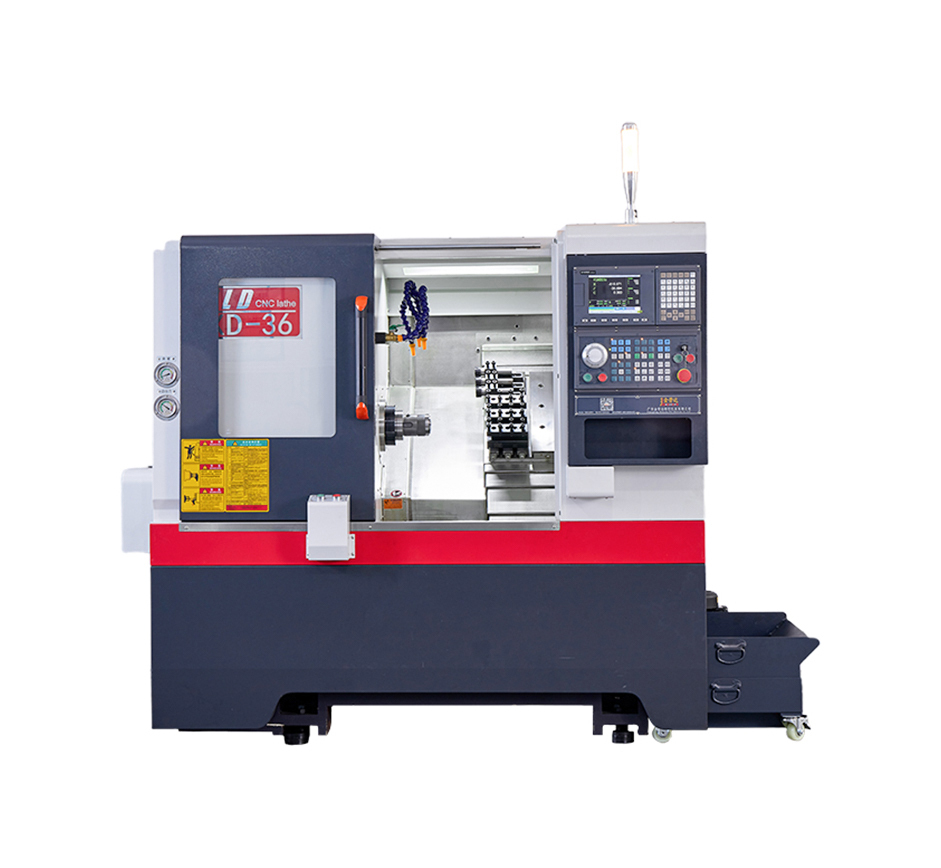

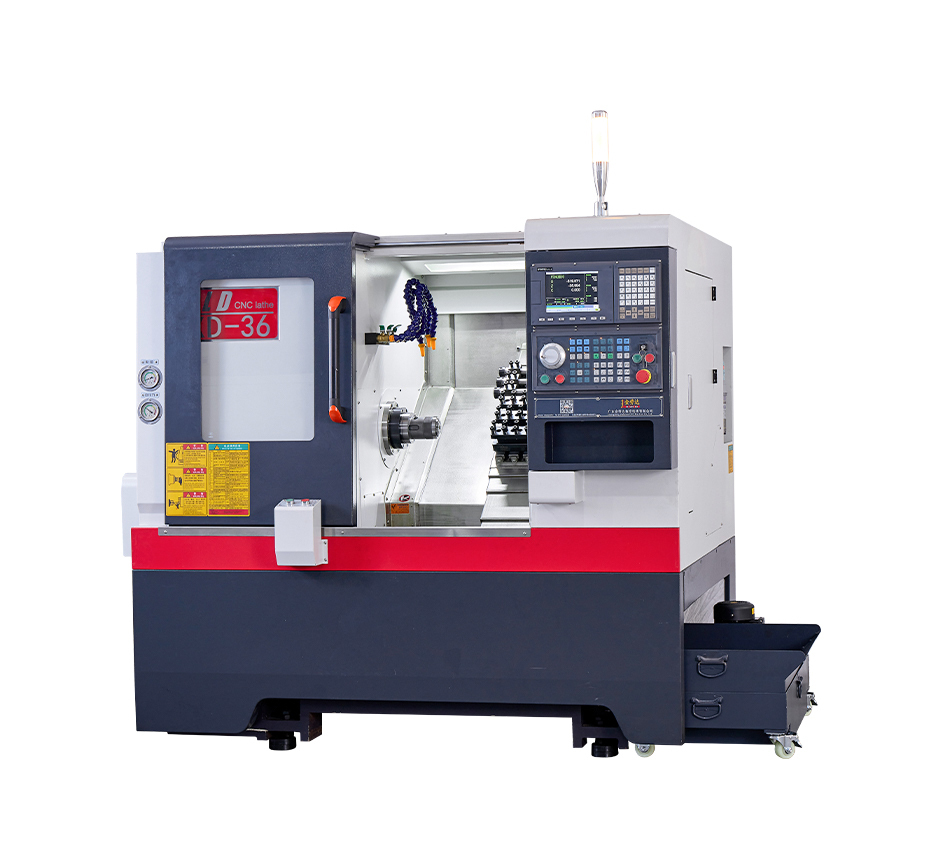

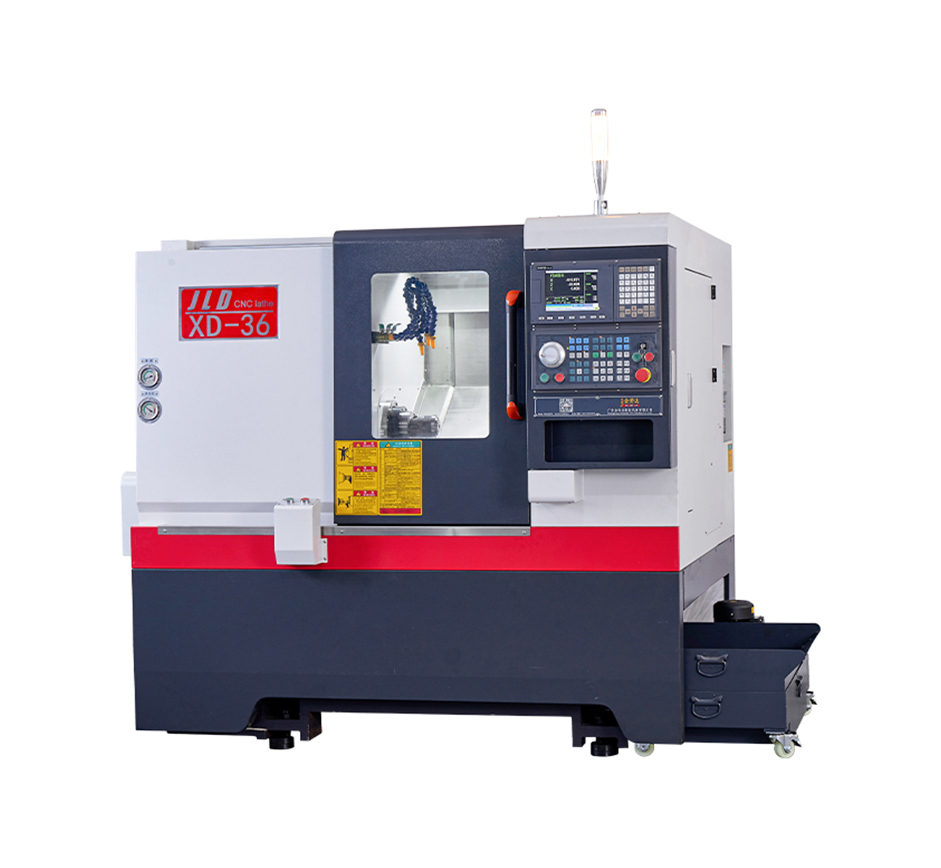

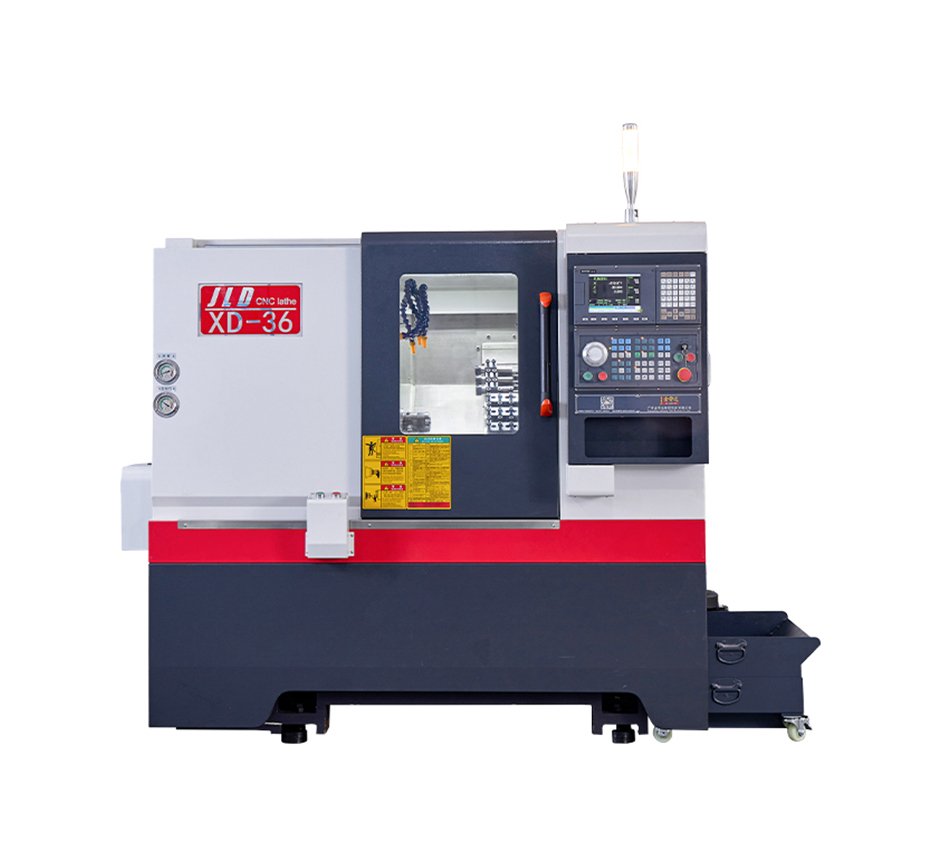

Name: LDS-36XD High-low Rail CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-36XD
Availability: InStock
Rating: 5 (1 reviews)

Specification

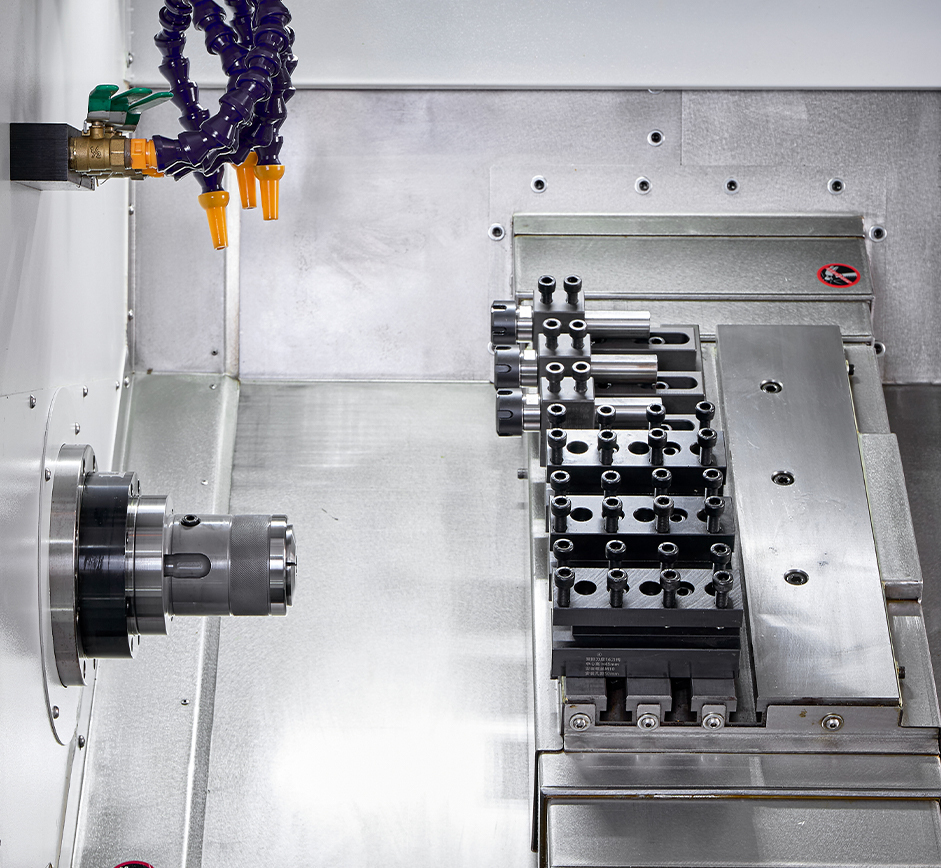

The gang tool high-low rail CNC lathe adopts domestic and foreign precision grade lead screws and linear guides, as well as high-precision sleeve spindles. The machine tool has high precision, and the high-low rail structure makes the lathe highly rigid and stable in precision. It is widely applied in the precision processing of large and small parts in various industries according to different user requirements.

LDS-36XD High-low Rail CNC Lathe Parameters
Serial number	Item		Unit	36XG
1	Barrel spindle unit through hole		mm	Φ46
2	Maximum swing diameter over bed		mm	Φ260
3	Spindle	Spindle nose type		A2-4
4		Maximum spindle speed	r/min	5000
5		Spindle set speed	r/min	1-4000
6		Maximum bar through-hole diameter	mm	Φ35
7	Tool mounting type		mm	Linear tool arrangement
8	Height from linear tool to spindle center		mm	45
9	Lead screw and guideway protection method			Full protection
10	Height from spindle center to floor		mm	1030
11	Lathe bed inclination		Degree	35°
12	X-axis effective travel		mm	700
13	Z-axis effective travel		mm	250
14	X/Z axis rapid traverse setting speed		mm	30
15	X-axis lead screw diameter & pitch		mm	3210
16	Z-axis lead screw diameter & pitch		mm	3210
17	X-axis linear guideways		mm	30
18	Z-axis linear guideways		mm	30
19	Overall dimensions (L×W×H )		mm	195017001700
20	Net weight		KG	2000
21	Roundness of machined workpiece		mm	0.003
22	Machining accuracy		mm	0.005
23	Cylindricity of machined workpiece		mm	0.008/200
24	X/Z-axis repeat positioning accuracy		mm	0.005
25	X/Z-axis absolute positioning accuracy		mm	0.005
26	Accuracy class of guideways		mm	H
27				C3
28				≤0.015
29				0.0025
30	Accuracy class of lead screw		mm	C3
31	Collet taper runout		mm	≤0.015
32	Spindle radial runout		mm	0.0025

Description

Advanced High-Low Rail Design for Stability
The Jinlaoda CNC lathe for sale integrates high-low rail technology to deliver enhanced stability during machining. This design minimizes vibration, contributing to precise, high-quality cuts on various materials, including metals and alloys. The metal CNC machine allows for consistent results across production runs, even during high-speed operations. This ensures superior surface finishes and tight tolerances for complex parts. With an emphasis on structural rigidity and performance, this turning CNC machine is ideal for industries requiring both accuracy and reliability in their production processes.

Compact yet Powerful Desktop CNC Machine
Designed to be compact, this desktop CNC machine provides professional-level performance while taking up minimal space in your workshop. Despite its small footprint, it offers the power and precision needed for intricate turning, milling, and drilling operations. The CNC lathe machine for sale features an advanced control system, making it a suitable option for both small-scale manufacturers and hobbyists. Its efficiency in small-batch production and rapid prototyping makes it a versatile tool for various industries, from automotive to aerospace. The machine’s compact size doesn’t sacrifice its ability to handle high-precision operations and longer production runs.

User-Friendly Interface for Improved Productivity
The CNC lathe machine for sale comes with an intuitive user interface that simplifies setup and operation. The control system supports multiple programming formats, making it easy to switch between different tasks and machining operations. Operators can expect reduced setup times, resulting in higher productivity. The desktop CNC machine also incorporates real-time monitoring systems to ensure smooth operations and minimize downtime. For those who prioritize ease of use and consistent performance, this turning CNC machine offers a practical solution for various manufacturing applications.

Product Advantages

Enhanced Stability with High-Low Rail System
The CNC lathe for sale is equipped with a high-low rail system that ensures improved stability during high-speed machining. This unique feature helps minimize vibrations, maintaining precision throughout long machining runs. The result is a metal CNC machine capable of producing parts with tight tolerances and smooth finishes. Its advanced stability is especially valuable in high-precision machining environments where even minor vibrations can affect part quality.

Compact Design with Powerful Performance
The desktop CNC machine delivers powerful machining capabilities while saving valuable workshop space. The compact design enables it to fit in tight spaces without sacrificing performance, making it perfect for smaller workshops or businesses with limited floor space. Despite its size, the CNC lathe machine for sale offers top-tier machining accuracy and the ability to perform complex operations such as turning, drilling, and milling. Its space-saving design makes it a versatile addition to a variety of manufacturing setups.

Versatility in Material Handling
The turning CNC machine is designed to handle a wide range of materials, from soft metals like aluminum to more challenging materials like stainless steel and titanium. This makes it suitable for diverse industries such as aerospace, automotive, and medical device manufacturing. The machine’s ability to perform various machining operations on multiple materials allows businesses to diversify their offerings without needing separate machines for each task. The metal CNC machine offers exceptional versatility, making it an indispensable tool for industries with diverse production requirements.

Use Scenarios

Precision Machining for Small-Scale Parts
The desktop CNC machine is ideal for producing small-scale parts that require high precision. Whether you’re working in automotive, aerospace, or electronics, the CNC lathe machine for sale delivers accuracy and efficiency. The ability to perform complex turning and milling operations on smaller components ensures that parts meet tight tolerances, making this machine a great option for businesses needing precision in small parts manufacturing.

Rapid Prototyping and Custom Parts Production
For rapid prototyping or custom part production, the CNC lathe for sale offers an excellent solution. Its ability to handle various materials while maintaining precision makes it a great tool for creating prototypes, custom parts, or small-batch runs. The turning CNC machine excels at quickly transforming designs into physical parts, allowing businesses to iterate and improve their products faster. This is particularly beneficial in industries like automotive or medical devices, where prototype accuracy is crucial for the development process.

Efficient Production for Low to Medium Volume Runs
In low to medium-volume production settings, the metal CNC machine excels at balancing efficiency and quality. Its robust design and user-friendly controls make it ideal for manufacturers producing components in batches. The CNC lathe machine for sale provides a reliable solution for high-volume operations that still require precision. Whether it’s small automotive components or intricate aerospace parts, this machine can handle repetitive tasks without sacrificing performance.

FAQ

What materials can the LDS-36XD High-low Rail CNC Lathe process?
The metal CNC machine is designed to handle a wide range of materials, including aluminum, steel, and titanium. Its robust construction and precise control enable accurate machining across various metals, making it suitable for sectors like automotive and electronics where material versatility is essential.

Can the LDS-36XD be customized to specific production requirements?
Yes, the LDS-36XD CNC lathe machine for sale offers flexible turning, milling, and drilling functions that can be tailored to different part specifications and production needs. Its user-friendly control system allows operators to adjust machining parameters for custom part fabrication or prototype development.

What support is available for installation and maintenance of the desktop CNC machine?
Guangdong Jinlaoda provides technical guidance and after-sales service for the desktop CNC machine installation and maintenance. Customers receive detailed setup instructions and access to expert support to ensure proper operation and sustained performance of their CNC lathe machine.

How does the LDS-36XD maintain precision during production runs?
The LDS-36XD cnc lathe for sale features a high-low rail design that enhances structural rigidity and reduces vibration. Combined with precision lead screws and linear guides, this stability supports tight tolerances and consistent accuracy, ensuring reliable results throughout short or extended production cycles.

Order your CNC lathe for sale now and increase your production efficiency!
