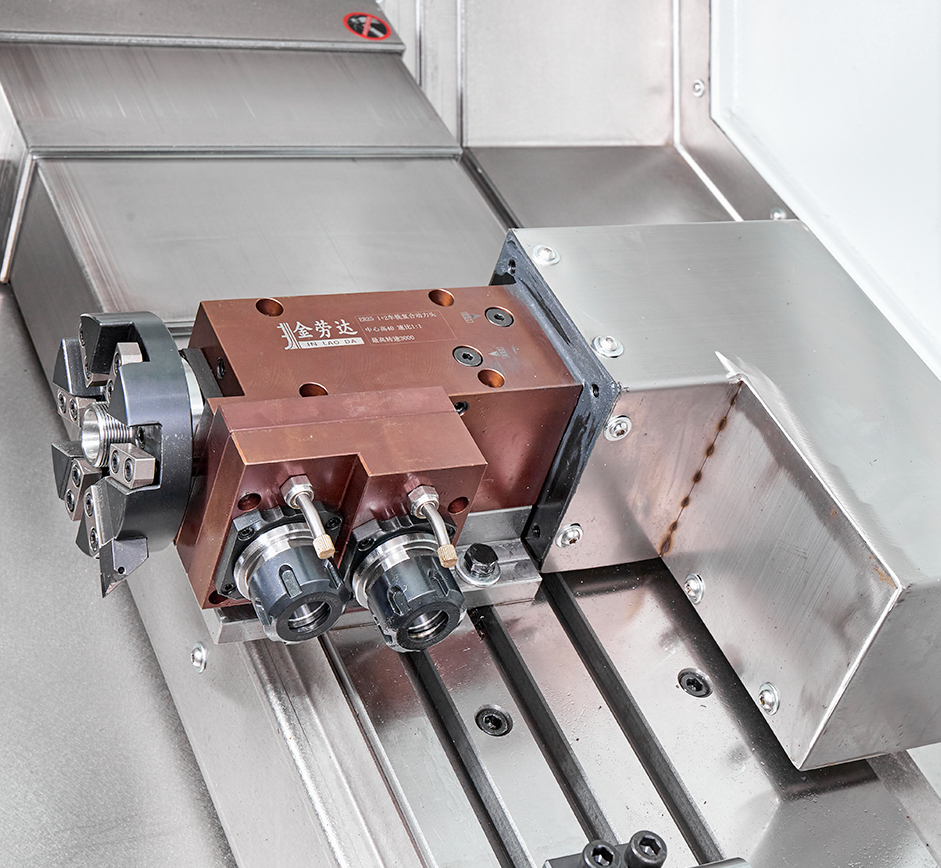

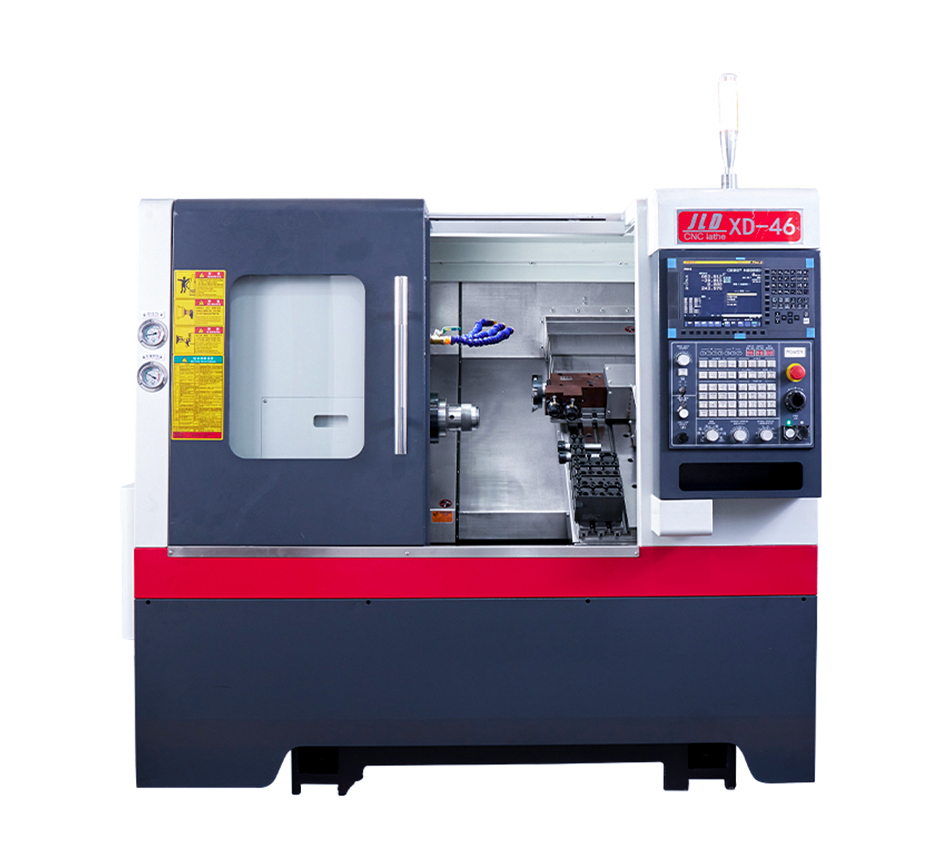

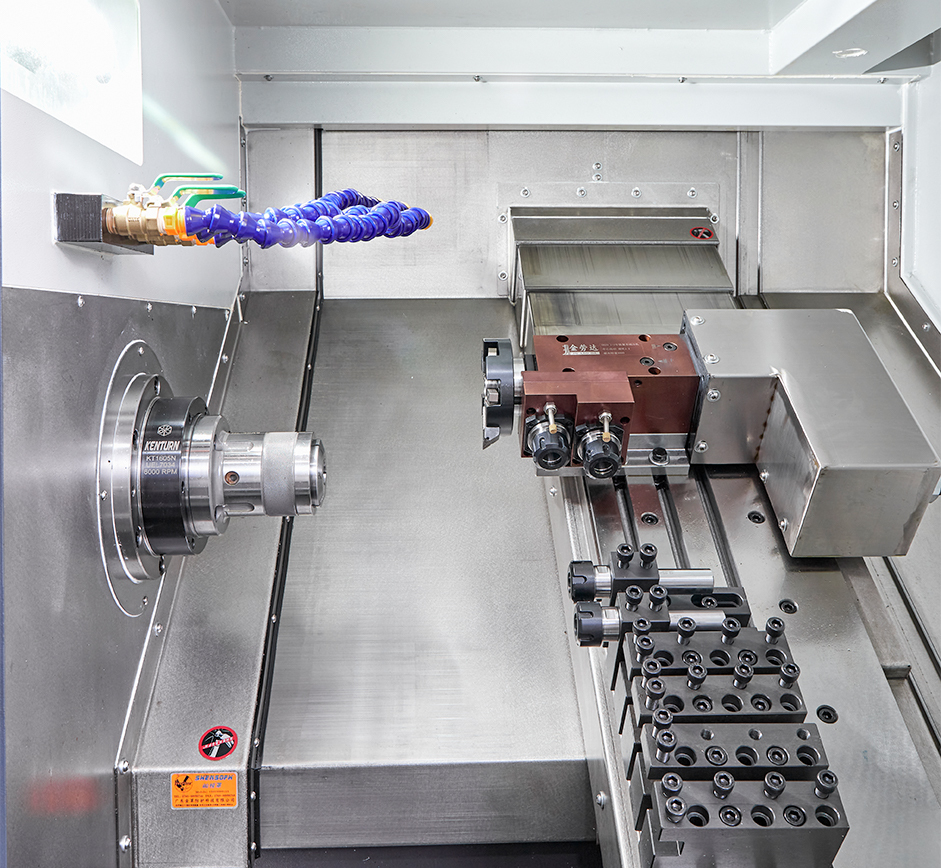

Name: LDS-46XD-CF CNC Polygon Turn-Milling Center
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46XD-CF
Availability: InStock
Rating: 5 (1 reviews)

Specification

The LDS-46XD-CF, designed by a leading cnc lathe manufacturer, is an advanced polygon turn-milling center integrating multiple metalworking functions. It delivers precision and efficiency as a versatile metal cutting cnc machine and cnc cutting machine system.

LDS-46XD-CF CNC Polygon Turn-Milling Center Parameters
Serial number	Item	Designation	Parameters
1	Spindle	Maximum machining diameter (for Disc-type workpieces) mm	Φ300
2		Maximum bar through-hole diameter mm	Φ45
3		Spindle nose type	A2-5
4		Maximum spindle speed rpm	5000
5		Spindle	Mechanical spindle
6		Chuck	User definition
7		Rotary hydraulic cylinder	646
8		Disdance from spindle center to floor mm	1100
9		Distance from spindle center to front door mm	560
10	Stroke and maximum feed rate	X-axis effective travel mm	900
11		Z-axis effective travel mm	350
12		X/Z-axis rapid traverse rate	30m/min
13	Power head	Square turning	ER25
16	Machining accuracy	X/Z-axis repeat positioning accuracy mm	0.005
17	Machining accuracy	X/Z-axis positioning accuracy mm	0.005
18	Motor power	Spindle servo motor KW	5.5
19		X-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
20		Z-axis servo motor KW	1.7 (SYNTEC Am8) 3000 RPM
21	Machine structure type and accessories specifications	Bed structure type	35° Integral high-low rail slant bed
22		X-axis linear guide specification mm	30
23		Z-axis linear guide specification mm	30
24		X-axis lead screw diameter & pitch (mm)	Φ3210
25		Z-axis lead screw diameter & pitch (mm)	Φ3210
26	Overall dimensions	L×W×H mm	205017501750
27	Overall dimensions	Net weight KG	2500

Description

Innovative Multi-Process Solution for Advanced Machining Needs
The LDS-46XD-CF CNC Polygon Turn-Milling Center addresses the needs of manufacturers requiring precise polygonal profiles in complex components. Targeted at industries specializing in shaft and disc machining, this equipment combines turning, milling, drilling, and tapping into a single setup. As a product from a specialized cnc lathe manufacturer, it aligns with engineering workflows seeking to reduce setup times and handling errors. This solution suits production lines demanding high repeatability and axial conformity, particularly benefiting users in automotive, mold, and hardware sectors. The machine’s integrated polygon turning attachment allows for innovative "turn instead of mill" processes, expanding possibilities for manufacturers invested in versatile cnc machine tools.

Precision Engineering Backed by Advanced Technical Specifications
Technically, this metal cutting cnc machine features a robust high-low rail slant-bed design providing stability during aggressive machining. It offers a 900 mm X-axis and 350 mm Z-axis travel, combined with a high-precision X/Z-axis repeat positioning accuracy of 0.005 mm. The spindle achieves speeds up to 5000 rpm, driven by a 5.5 kW motor, ensuring strong performance even with demanding metal profiles. The integrated polygon turning head enables simultaneous polygonal cutting on rotating workpieces, significantly improving surface finish and positional accuracy. These measurable specifications underline this solution’s capability as a comprehensive cnc cutting machine suited for high-precision, high-efficiency production environments.

Broad Industrial Integration for Enhanced Production Efficiency
In real-world applications, the LDS-46XD-CF CNC polygon turn-milling center streamlines workflows by consolidating multiple metalworking processes into one machine. This integration reduces throughput time, minimizes part handling, and lowers overall production costs. Industries such as automotive manufacturing, electronics hardware, and precision mold making particularly benefit from its capability to maintain consistent polygonal geometry without multiple setups. As part of advanced cnc machine tools offerings, this polygon turn-milling center facilitates rapid prototyping, R&D validation, and precision batch production. Its compatibility with various tooling options also enables customization to specific manufacturing standards and compliance requirements, reinforcing its value as a key asset for industrial-scale metal cutting applications.

Product Advantages

Robust Structural Design and Integrated System Efficiency
This product represents a sophisticated design with a high-low rail slant-bed construction, engineered for maximum rigidity and vibration absorption during combined turn and mill operations. As a top-tier metal cutting cnc machine, it includes an integrated polygon turning attachment that consolidates complex machining steps previously requiring multiple units. Modular tooling compatibility and high-precision linear guideways support repeat positioning accuracy within 0.005 mm, reflecting the meticulous engineering focus of a seasoned cnc cutting machine manufacturer. Such a structured approach reduces mechanical stress on components and facilitates easier maintenance, positioning the machine as a long-term industrial asset.

Enhanced Performance, Usability, and Operational Value
Performance-wise, the LDS-46XD-CF offers seamless operation with synchronous polygon turning and milling, which accelerates production throughput and eliminates secondary finishing processes. Its user-centric servo motor controls provide reliable speed and torque delivery, optimizing the machining of complex geometries. This comprehensive system delivers not only precision consistent with high standards expected from a reputable cnc lathe manufacturer but also enhances usability through integrated tooling management and straightforward programming interfaces. Ultimately, it improves workflow efficiencies and return on investment by reducing machine downtime and increasing part consistency in demanding production environments.

Use Scenarios

Application in Precision Shaft and Disc Manufacturing Environments
In sectors focused on shaft and disc component fabrication, this cnc cutting machine plays a pivotal role by enabling single-setup polygonal machining of flats, squares, and hexagonal profiles. The synchronization of spindle rotation with polygon turning eliminates the need for multiple datum recalibrations, ensuring axial and angular precision vital for drivetrain assemblies and aerospace components. Its robust design and rapid traverse capabilities integrate well into production lines requiring consistent quality and short cycle times. Compliance with stringent manufacturing tolerances is achieved, supporting integration within automated quality assurance systems typical in heavy machinery and automotive component production.

Role in Prototyping and R&D for Innovative Polygon Turning Solutions
For research and development operations developing new polygon turning tools or testing custom part geometries, the LDS-46XD-CF serves as a versatile and accurate platform. It allows rapid experimentation with polygonal features on rotating workpieces under controlled conditions, providing precise in-process validation of dimensional and geometric accuracy. Its adaptability within engineering test labs or pilot production environments enhances collaboration between design and manufacturing teams. The machine’s multi-process capabilities streamline prototype iterations by combining turning, milling, and polygon profiling in one cycle. As a sophisticated member of cnc machine tools, it boosts innovation throughput while maintaining alignment with industrial quality standards.

FAQ

What materials are compatible with the LDS-46XD-CF CNC Polygon Turn-Milling Center?
The LDS-46XD-CF is designed to machine a wide variety of materials, including metals, plastics, and composites. Its robust design and tooling versatility ensure reliable performance across these materials, making it a versatile choice for different industrial applications requiring metal cutting cnc machine solutions.

Can the CNC lathe manufacturer customize the LDS-46XD-CF for specific production needs?
Yes, Guangdong Jinlaoda provides customization based on customer requirements. Options include tooling configurations and control systems tailored to optimize machining processes. Reach out to the cnc lathe manufacturer to discuss your custom production plan and ensure the machine meets your exact specifications.

What are the installation requirements and support offered for the CNC cutting machine?
Installation requires a stable foundation able to support the 2500 kg net weight, with adequate space for its 2050×1750×1750 mm footprint. Jinlaoda offers technical assistance including training and setup guidance to ensure optimal operation of the CNC cutting machine at your facility.

How should regular maintenance be performed on this CNC polygon turn-milling center?
Routine maintenance includes inspecting spindle conditions, checking tool wear, and keeping software updated. Proper care ensures the high precision and reliability expected from a cnc cutting machine manufacturer product like the LDS-46XD-CF, helping to maintain machining accuracy and extend machine lifespan.

Get your CNC milling machine today and boost your production efficiency!
