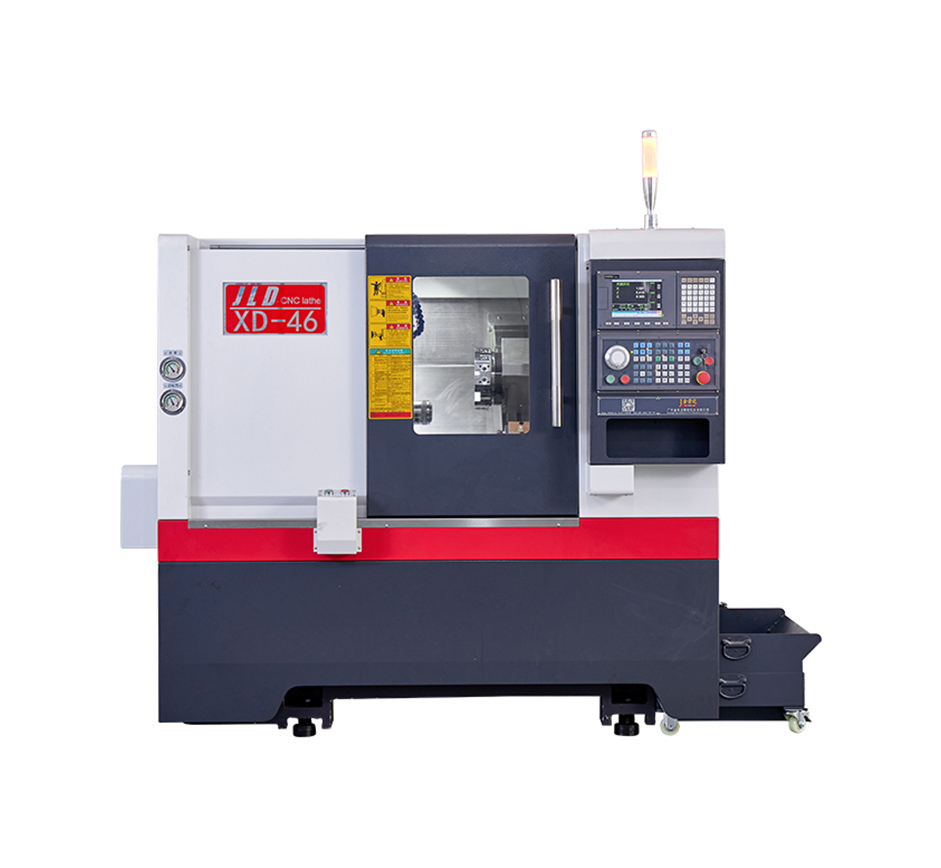

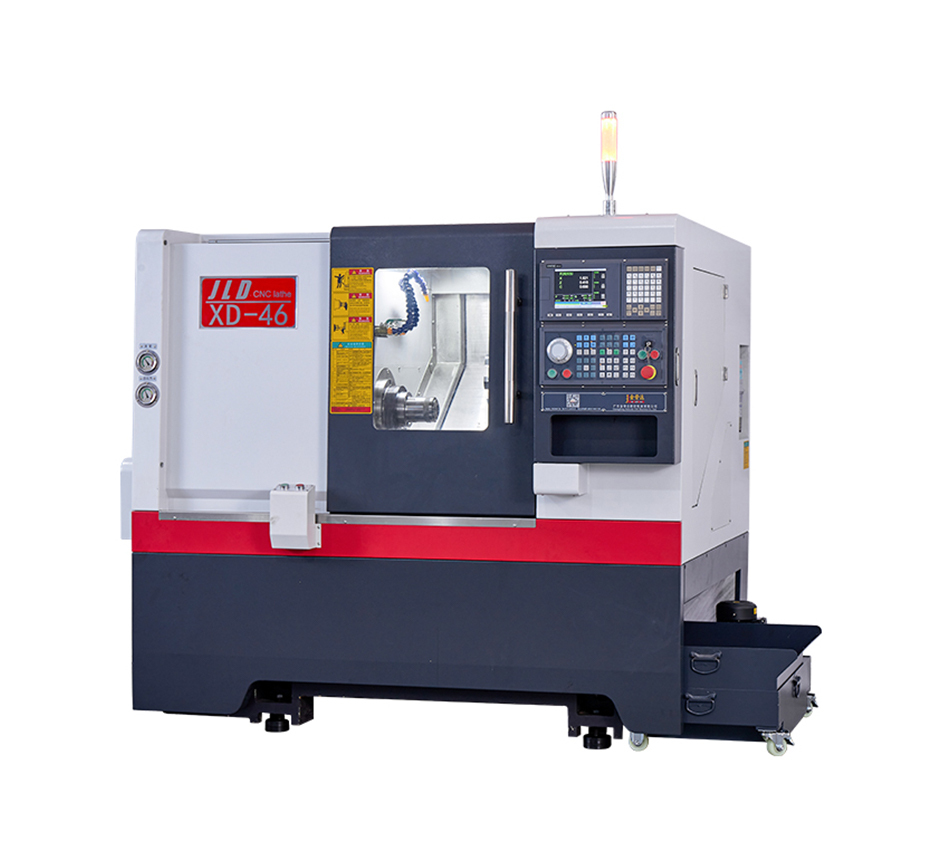

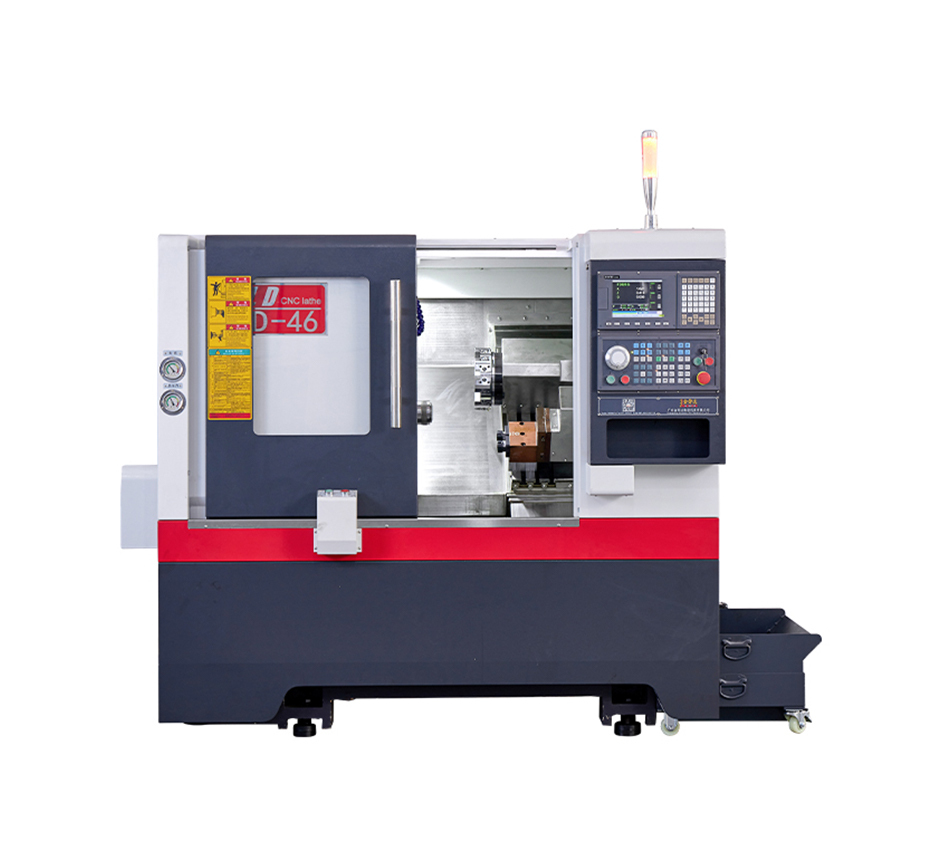

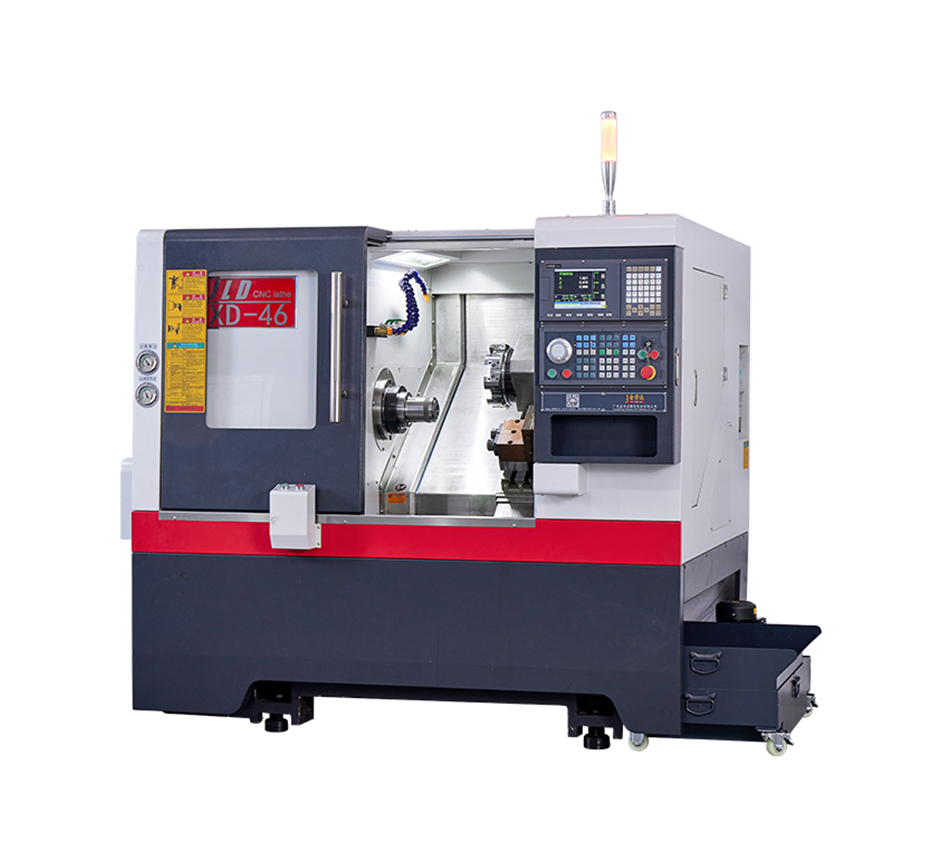

Name: LDS-46XD-DT-D2 End-mounted 2-axis Servo Turret CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46XD-DT-D2
Availability: InStock
Rating: 5 (1 reviews)

Specification

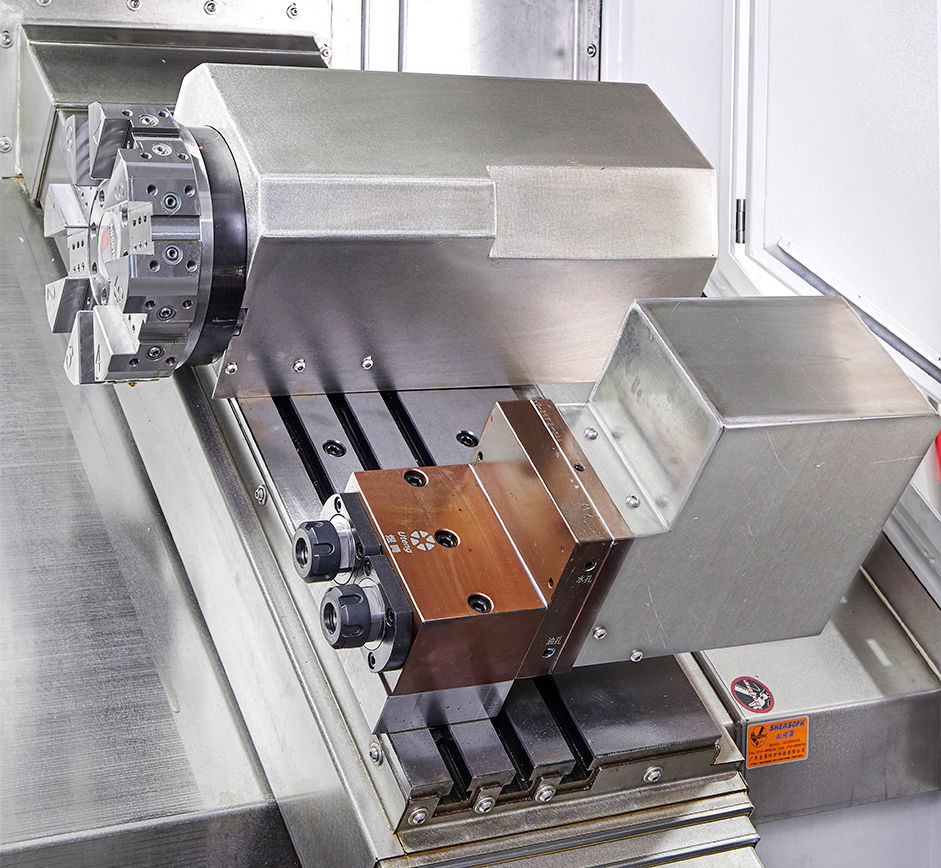

The gang tool high-low rail CNC lathe with integrated innovative tool layout is equipped with servo tool turrets at the rear end to achieve rapid and precise tool switching. It is specially integrated with two independent power heads, supporting the processing of complex procedures such as end face milling, drilling and tapping. Designed specifically for efficient, high-precision,
and multi-process compound processing, it significantly reduces the number of clamping operations, enhancing the production efficiency and processing flexibility of complex rotary parts.

LDS-46XD-DT-D2 End-mounted 2-axis Servo Turret CNC Lathe Parameters
Serial number	Item		Unit	46XD
1	Barrel spindle unit through hole		mm	Φ46
2	Maximum swing diameter over bed		mm	Φ300

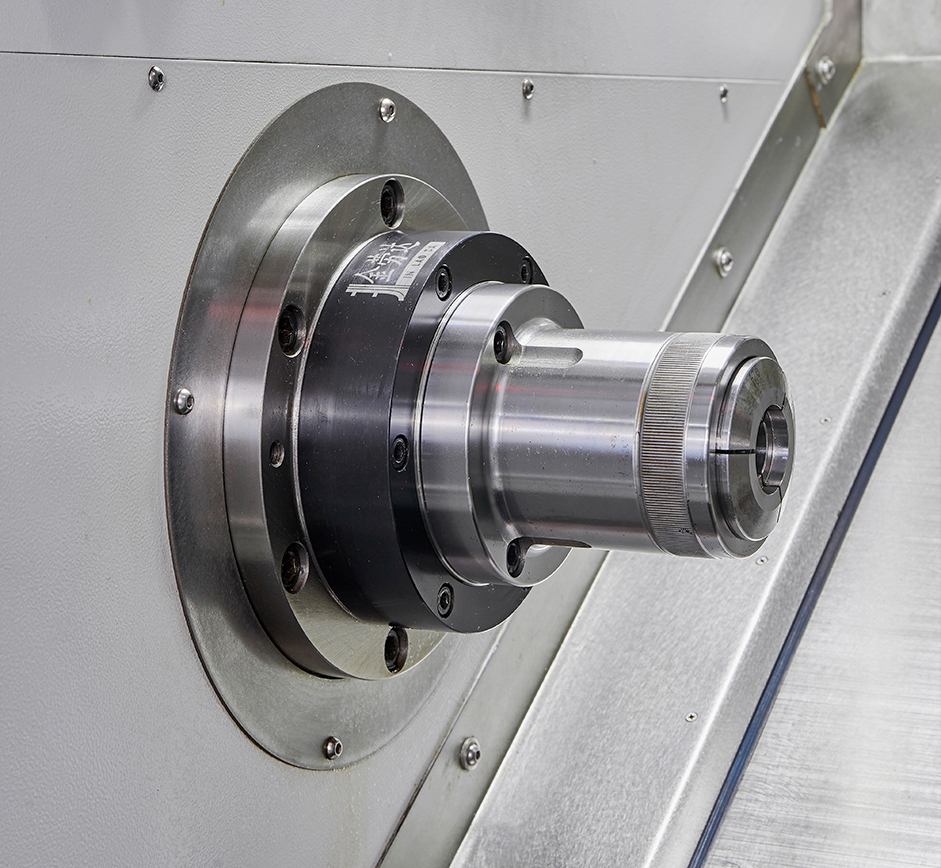

3	Spindle	Spindle nose type		A2-5
4		Maximum spindle speed	r/min	5000
5		Spindle set speed	r/min	1-4000
6		Maximum bar through-hole diameter	mm	Φ45
7	Tool mounting type		mm	Servo turret
8	Height from turret to spindle center		mm	63
9	Lead screw and guideway protection method			Full protection
10	Height from spindle center to floor		mm	1150
11	Lathe bed inclination		Degree	35°
12	Turret specification	Servo turret model number	Tool position / pieces	63 Servo 8 stations
13		Square/round turret specifications	mm	□25*25、￠25
14		Turret center height	mm	63
15		Turret Y-axis travel	mm	No
16	Power head			ER25 Dual-end power head
17	X-axis effective travel		mm	900
18	Z-axis effective travel		mm	350
19	X/Z axis rapid traverse setting speed		mm	30
20	X-axis lead screw diameter & pitch		mm	3210
21	Z-axis lead screw diameter & pitch		mm	3210
22	X-axis linear guideways		mm	30
23	Z-axis linear guideways		mm	30
24	Overall dimensions (L×W×H )		mm	205017501750
25	Net weight		KG	2500
26	Roundness of machined workpiece		mm	0.003
27	Machining accuracy		mm	0.005
28	Cylindricity of machined workpiece		mm	0.008/200
29	X/Z-axis repeat positioning accuracy		mm	0.005
30	X/Z-axis absolute positioning accuracy		mm	0.005
31	Accuracy class of guideways		mm	H
32				C3
33				≤0.015
34				0.0025
35	Accuracy class of lead screw		mm	C3
36	Collet taper runout		mm	≤0.015
37	Spindle radial runout		mm	0.0025

Description

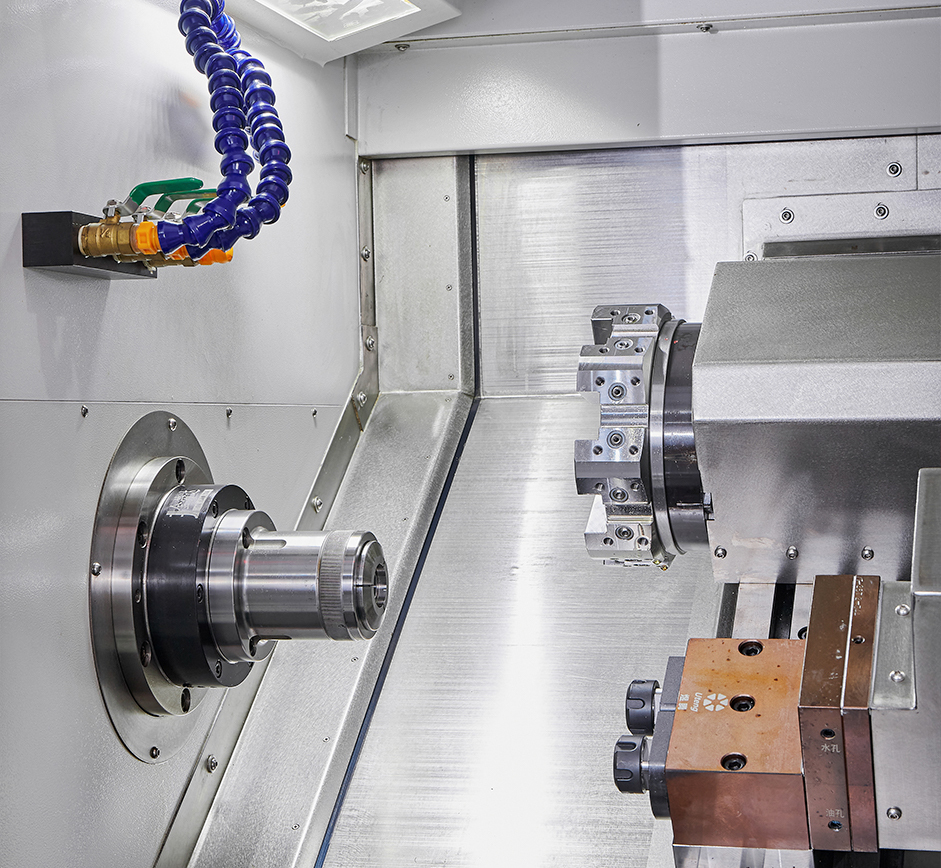

The LDS-46XD-D2 is an innovatively designed turret-type turning-milling CNC lathe with a high-low rail structure. It breaks the functional limits of traditional lathes by incorporating a powerful end-face 2-axis live tooling system, enabling milling, drilling, and tapping operations on the end face of a workpiece. This allows even complex features like eccentric diameters, end-face grooves, polygons, and curved surfaces to be completed in a single clamping, truly achieving "complete machining" from raw material to finished part.

Product Advantages

Enhanced Accuracy & Guaranteed Consistency: A single setup avoids cumulative errors from machine changeovers and re-positioning. This fundamentally ensures the geometric tolerance and dimensional accuracy of machined parts, delivering exceptionally high quality consistency.

Drastically Shortened Lead Times: Consolidates processes that would normally require multiple machines into one. Eliminates waiting, setup, and handling time between operations, significantly reducing the total machining cycle per part and accelerating time-to-market.

Increased Production Flexibility: One machine with multiple capabilities allows for quick adaptation to small-batch, high-mix production. Product changeovers require only a program switch, reducing reliance on dedicated equipment and enabling a more agile response to market changes.

Reduced Total Cost of Ownership: Lowers capital investment in multiple machines and saves valuable floor space. Also reduces overall labor, management, and inventory costs by minimizing clamping steps, work-in-progress, and manual intervention.

Use Scenarios

Aerospace: Engine short shafts, navigation instrument components, fittings with special grooves.

Automotive Industry: Turbocharger rotors, transmission valve spools, cams with eccentric structures.

Medical Devices: Surgical instrument handles, implant abutments, precision connectors with internal threads.

High-Precision Instrumentation: Sensor housings, fluid control valve bodies, multi-purpose connectors with end-face teeth.
