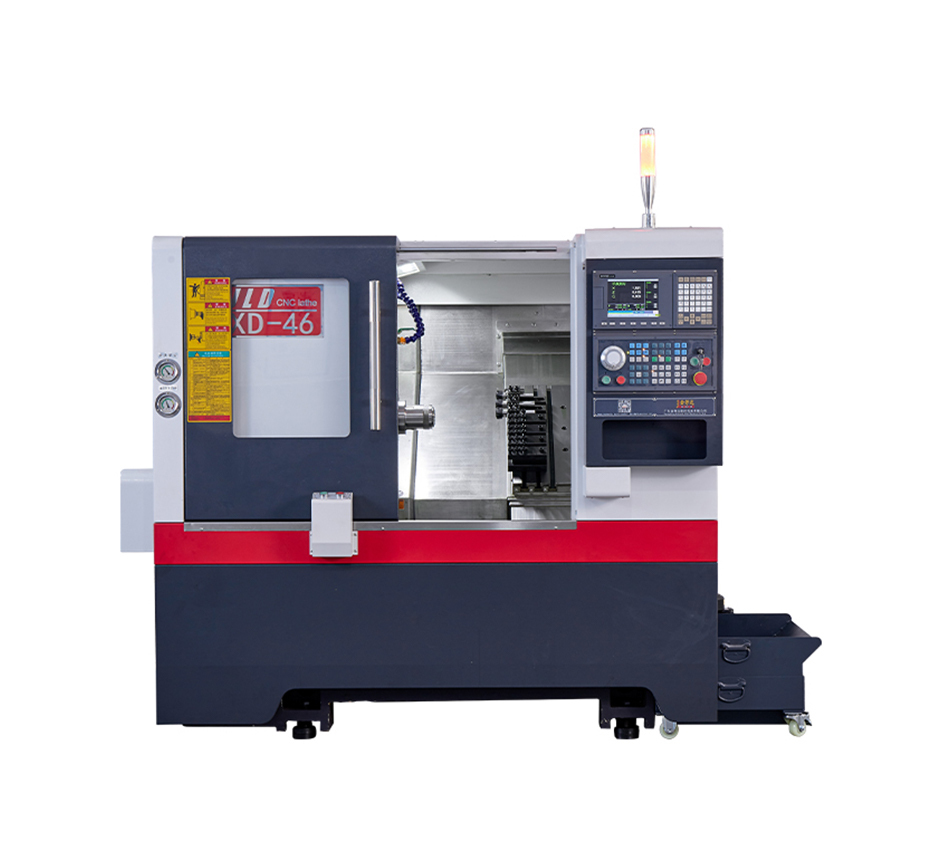

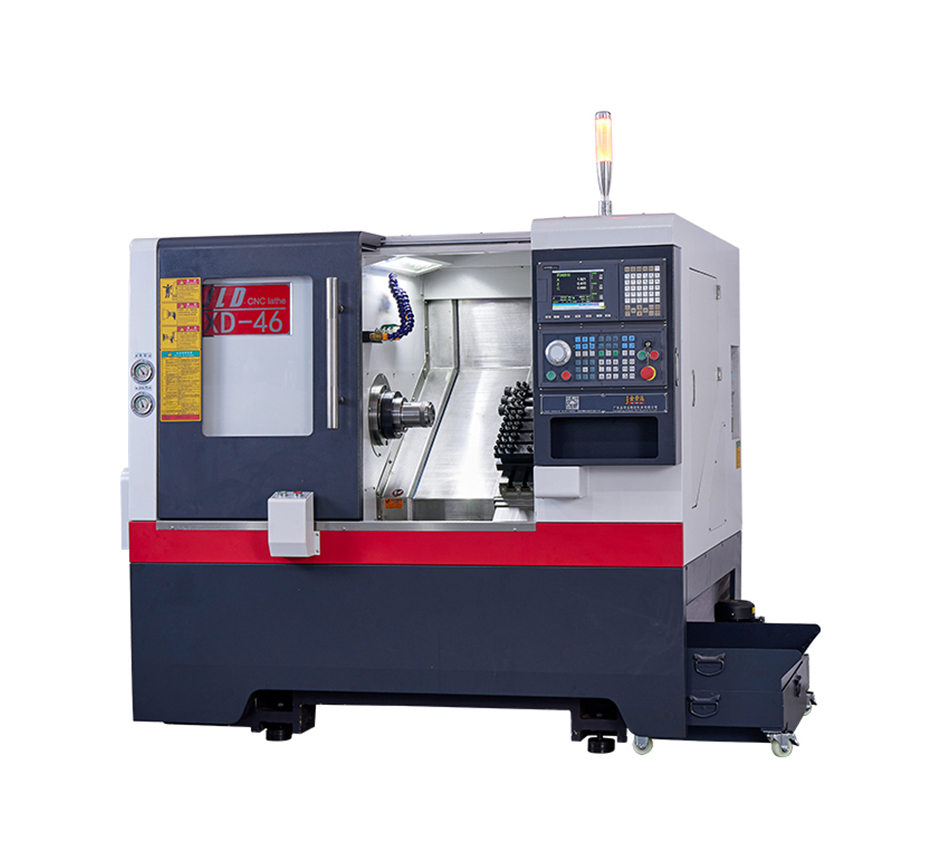

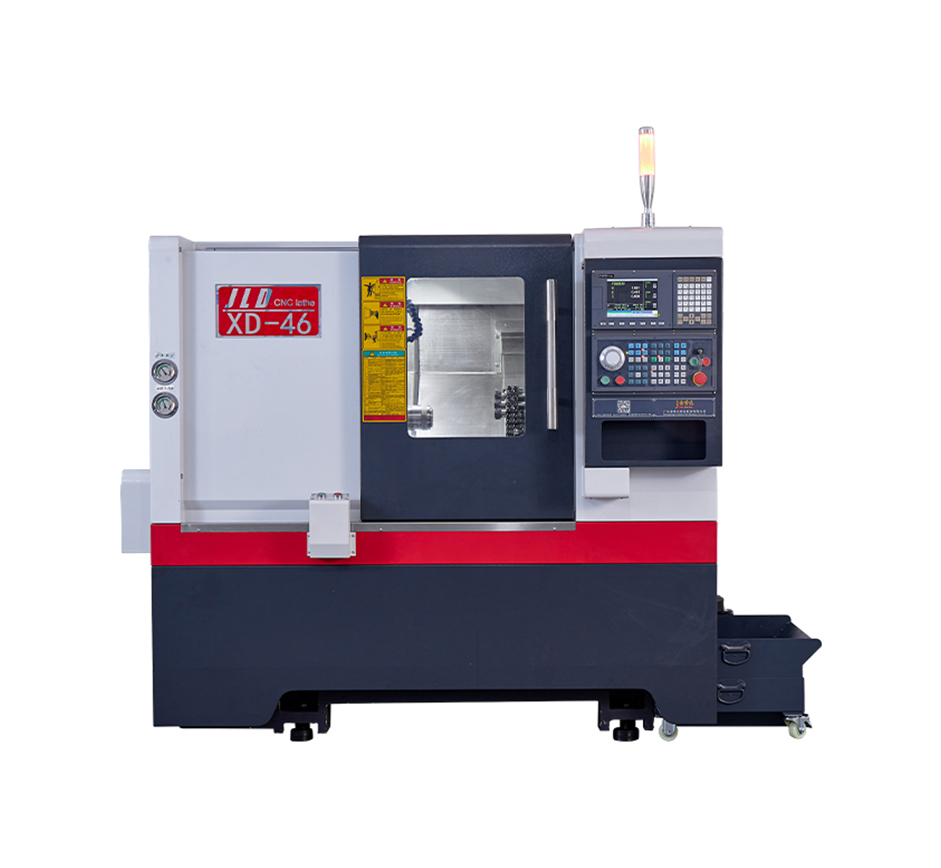

Name: LDS-46XD High-low Rail CNC Lathe
Brand: Guangdong Jinlaoda CNC Machine Tool Co., Ltd
SKU: LDS-46XD
Availability: InStock
Rating: 5 (1 reviews)

Specification

The gang tool high-low rail CNC lathe adopts domestic and foreign precision grade lead screws and linear guides, as well as high-precision sleeve spindles. The machine tool has high precision, and the high-low rail structure makes the lathe highly rigid and stable in precision. It is widely applied in the precision processing of large and small parts in various industries according to different user requirements.

LDS-46XD High-low Rail CNC Lathe Parameters
Serial number	Item		Unit	46XD
1	Barrel spindle unit through hole		mm	Φ46
2	Maximum swing diameter over bed		mm	Φ300
3	Spindle	Spindle nose type		A2-5
4		Maximum spindle speed	r/min	5000
5		Spindle set speed	r/min	1-4000
6		Maximum bar through-hole diameter	mm	Φ45

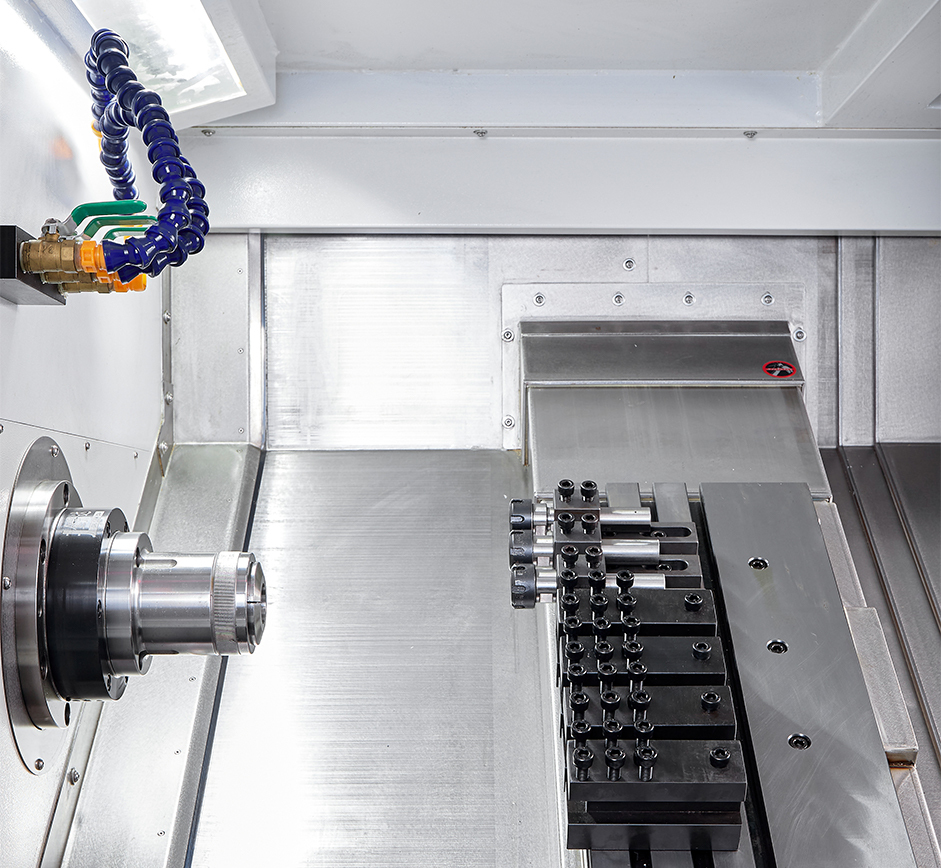

7	Tool mounting type		mm	Linear tool arrangement
8	Height from linear tool to spindle center		mm	80
9	Lead screw and guideway protection method			Full protection
10	Height from spindle center to floor		mm	1150
11	Lathe bed inclination		Degree	35°
12	X-axis effective travel		mm	900
13	Z-axis effective travel		mm	350
14	X/Z axis rapid traverse setting speed		mm	30
15	X-axis lead screw diameter & pitch		mm	3210
16	Z-axis lead screw diameter & pitch		mm	3210
17	X-axis linear guideways		mm	30
18	Z-axis linear guideways		mm	30
19	Overall dimensions (L×W×H )		mm	205017501750
20	Net weight		KG	2300
21	Roundness of machined workpiece		mm	0.003
22	Machining accuracy		mm	0.005
23	Cylindricity of machined workpiece		mm	0.008/200
24	X/Z-axis repeat positioning accuracy		mm	0.005
25	X/Z-axis absolute positioning accuracy		mm	0.005
26	Spindle indexing repeat positioning accuracy		mm	No
27	Spindle indexing absolute positioning accuracy		mm	No
28	Accuracy class of guideways		mm	H
29				C3
30				≤0.015
31				0.0025
32	Accuracy class of lead screw		mm	C3
33	Collet taper runout		mm	≤0.015
34	Spindle radial runout		mm	0.0025

Advanced High-Low Rail Technology for Stability
The Jinlaoda CNC lathe for sale incorporates advanced high-low rail technology, which ensures greater stability and precision during machining. This design helps to reduce vibrations, which is crucial for ensuring high-quality finishes and maintaining accuracy throughout production. The metal CNC machine is specifically designed to handle various materials, including metals and alloys, making it ideal for industries such as automotive, aerospace, and more. The system’s rigid build supports high-speed operations while minimizing thermal expansion, contributing to enhanced precision over long durations of operation. This machine is a solid choice for businesses looking to enhance their productivity while maintaining reliable results in turning CNC machine operations.

Compact Yet Powerful Desktop CNC Machine Design
One of the key features of this desktop CNC machine is its compact design, which maximizes performance in a smaller footprint. The CNC lathe machine for sale offers a powerful solution for businesses with limited space but high precision demands. Despite its smaller size, this lathe provides the robust performance necessary for precision turning and milling, making it a great choice for small-scale manufacturers, workshops, or R&D facilities. Its compact design doesn’t sacrifice performance; it’s designed to handle both prototype and small batch production. This turning CNC machine balances performance and space efficiency, delivering superior results without requiring large-scale floor space.

User-Friendly Interface with Advanced Controls
The CNC lathe machine for sale comes equipped with a user-friendly interface that simplifies the programming and operation process. With its easy-to-navigate controls, users can program the machine for a wide range of tasks, including turning, drilling, and milling. The interface supports multiple programming options, making it adaptable to various machining needs. The metal CNC machine also integrates advanced feedback systems to monitor machine performance in real-time, enabling operators to track progress and adjust settings to maintain high-quality output. Whether you're a beginner or an experienced machinist, the desktop CNC machine makes complex operations easier to execute, enhancing both productivity and precision.

Product Advantages

Enhanced Stability and Precision with High-Low Rail System
The high-low rail system of the CNC lathe for sale provides superior stability, which directly contributes to the machine’s precision. By minimizing vibrations and thermal distortion, this feature ensures the accuracy of each cut, even under high-speed operation. This makes the metal CNC machine an ideal choice for applications that require tight tolerances and flawless finishes. Its robust frame and stable operation allow for long-term performance without the loss of machining precision, making it a reliable option for industries that demand high-quality results.

Compact Design without Compromising Performance
The desktop CNC machine design allows users to benefit from professional-level performance while saving valuable shop space. Despite its compact size, the machine’s performance is on par with larger, more expensive CNC systems. It is capable of handling intricate machining tasks, making it perfect for small parts production, prototyping, and more. The CNC lathe machine for sale provides a high degree of flexibility, allowing users to manage diverse production needs without requiring significant space or resources. This feature makes it particularly useful for small to medium-sized businesses or workshops looking to expand their machining capabilities.

Flexible Operation for a Wide Range of Applications
The turning CNC machine offers great versatility, making it suitable for a wide range of industries. Whether you're dealing with metalworking, creating prototypes, or engaging in small-batch production, this CNC lathe for sale is adaptable enough to handle it all. The machine can efficiently process various metals, including steel, aluminum, and titanium, thanks to its advanced spindle system and robust construction. Whether in the aerospace, automotive, or medical device manufacturing sectors, the metal CNC machine ensures precise and reliable results across various materials and industries.

Use Scenarios

Precision Manufacturing for Small and Medium Parts
The desktop CNC machine is designed to handle the production of small to medium-sized parts with precision and reliability. Its compact size and advanced features allow it to be used effectively in industries where small parts with high tolerances are required. The CNC lathe machine for sale is perfect for industries such as automotive, where precise turning and milling are essential for components like shafts, brackets, and gears. With its efficient setup and operation, this machine can easily manage both small and large production runs, making it an essential tool for any manufacturer looking for precision.

Prototyping and Small-Batch Production
For prototyping and custom manufacturing, the CNC lathe for sale is a great choice for quickly turning designs into finished parts. Whether for R&D, design verification, or low-volume production, this machine offers the versatility needed for rapid prototyping. The turning CNC machine can efficiently handle a wide variety of materials and designs, providing businesses with a flexible solution for testing new ideas or creating specialized components. Its ease of use and quick setup time allow for faster iteration and reduced lead times, which is crucial for industries that thrive on innovation.

Precision in High-Volume Manufacturing
In high-volume manufacturing environments, the metal CNC machine ensures consistent, high-precision results for large production runs. With its advanced features and stability, this CNC lathe machine for sale can maintain tight tolerances across thousands of parts, ensuring that each piece meets the required standards. It is perfect for industries where high-volume, repeatable machining processes are essential, such as in automotive and aerospace components. This machine is built to support continuous operation, ensuring that production schedules are met without sacrificing quality or performance.

About Us

Jinlaoda is a leading manufacturer specializing in high-performance CNC lathe machines for sale. With years of experience in the industry, we focus on providing advanced CNC machining solutions for various industries, including automotive, aerospace, and electronics. Our commitment to quality and innovation ensures that every machine we produce meets the highest standards for performance and reliability. At Jinlaoda, we pride ourselves on delivering precision engineering solutions that enhance the capabilities of our clients. From design to manufacturing, our metal CNC machine products are built to last, offering unmatched efficiency and precision. Our extensive research and development capabilities allow us to continuously improve our offerings to meet the evolving needs of our customers. Whether you need a desktop CNC machine for small-batch production or a high-capacity CNC lathe for mass manufacturing, Jinlaoda provides the machinery you need to succeed.

FAQ

What is the maximum size of parts the CNC lathe machine for sale can handle?
The CNC lathe machine for sale is designed to handle a wide range of parts, with size limitations depending on the specific configuration of the machine. Typically, it handles small to medium-sized components, ideal for industries like aerospace and automotive.

Is the desktop CNC machine suitable for prototyping?
Yes, the desktop CNC machine is perfect for prototyping, offering high precision for creating prototype parts and small batches. Its flexible design allows for rapid testing of new components or ideas.

What types of materials can the metal CNC machine process?
The metal CNC machine is capable of machining various materials, including aluminum, steel, stainless steel, and titanium, making it suitable for a wide range of applications across multiple industries.

How does the turning CNC machine handle precision over extended use?
The turning CNC machine is designed with robust features to maintain high precision even during extended operation, thanks to its advanced high-low rail system that reduces vibrations and ensures stable machining.

Can the CNC lathe for sale be used for both small and large production runs?
Yes, the CNC lathe for sale is versatile and can be used for both small and large production runs. It offers fast setup times and precise operation, making it ideal for high-volume manufacturing as well as small-batch production.
